8 TO 10 BAR COMPACT 220 VOLT SCREW COMPRESSORS

THE TRIED AND TESTED RANGE OF ROTARY SCREW COMPRESSORS - A FAVORITE OF MANY SMALL & MEDIUM SIZE ENTERPRISES.

Something new to get excited about!

SUPER-COMPACT 220 VOLT SCREW COMPRESSORS

SPECIFICATIONS

SR-5VSD - SR-6VSD

Model	SR-5VSD	SR-6VSD
Displacement	360Lpm / 13CFM	500Lpm / 18CFM
Exhaust Pressure	0.8 or 1.0Mpa Max	0.8 or 1.0Mpa Max
Motor Power	3.7KW	4.5KW
Voltage/Frequency	220/50HZ/1-PHASE	220/50HZ/1-PHASE
Noise Level at 1M	68±3DBA(A)	68±3DBA(A)
Cooling Method	Air-Cooled	Air-Cooled
Amount of Lubricant	2.5L	2.5L
Oil Capacity	>3PPM	>3PPM
Start Mode	Soft Start / VSD	Soft Start / VSD
Outlet Size	G1/2"	G1/2"
Fuel Storage Tank	100L	100L
Weight	120KG	130KG
Dimensions	10205001035mm	10205001035mm

Variable Speed
Wheels Included

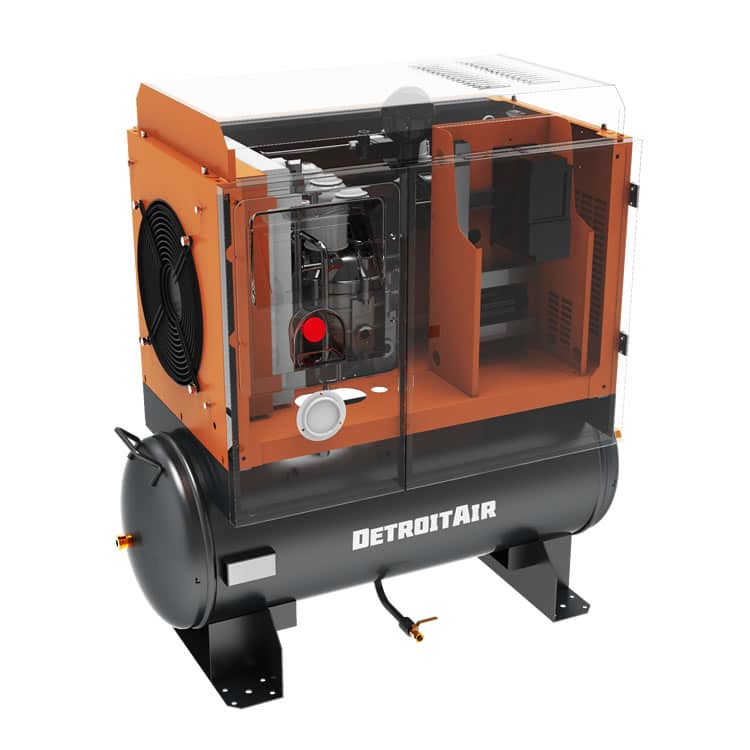

SPECIALIST ROTARY (A DETROIT AIR SUB-BRAND) HAS JUST LAUNCHED THEIR 220 VOLT RANGE OF ULTRA COMPACT VARIABLE SPEED TANK MOUNTED SCREW COMPRESSORS. POWERFUL EFFICIENT AND SILENT AVAILABLE IN BOTH 8 AND 10 BAR MAX OPERATING PRESSURES AND BOASTING LOW SERVICE COSTS THESE MODELS ARE IDEAL FOR SMALL BUSINESS AND HOME USE.

Key Product Features

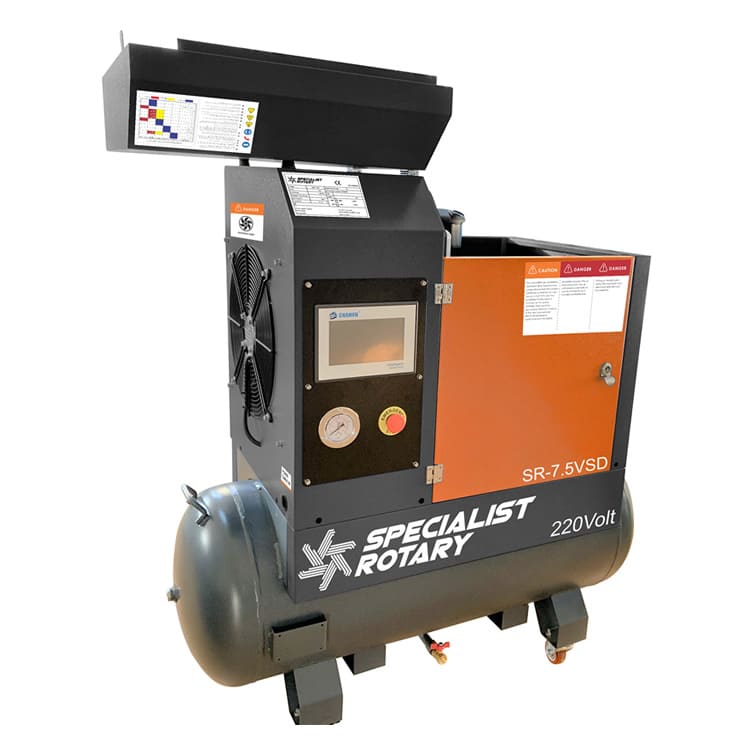

SR-7.5VSD

Model	SR-7.5VSD
Displacement	700Lpm / 25CFM
Exhaust Pressure	0.8 or 1.0Mpa Max
Motor Power	5.5KW
Voltage/Frequency	220/50HZ/1-PHASE
Noise Level at 1M	70dB(A)
Cooling Method	Air-Cooled
Amount of Lubricant	4.5L
Oil Carrying Capacity Of Outlet Gas	>3PPM
Start Mode	Soft Start / VSD
Outlet Size	G1/2"
Volume Of Fuel Storage Tank	200L
Weight	150KG
Dimensions	12705001140mm

Variable Speed
Wheels Included

TOP REASONS TO BUY THIS PRODUCT

A Great Warranty & Backup Service PLUS

WIDE RANGE

WIDER RANGE of models offer a small compact solution that competes with a similar sized piston compressor. Motor powers range from 5hp up to 7.5hp and tank sizes from 100L up to 200L.

MEDIUM DUTY

Pressure capabilities suitable for working from 8 Bar to 10 Bar max operating pressures. Powerful efficient and silent, only delivering the air you need when you need it. A solution that is an excellent alternative to a piston compressor for both home and small business use.

FEATURE PACKED

All models are air-cooled and feature variable speed function, low energy consumption, super silent running, advanced protection features, simple operation, cost effective service parts, long service life, robust construction with high-quality powder coating and excellent engineering. All models are backed up by our solid warranty and support policy.
